Introduction

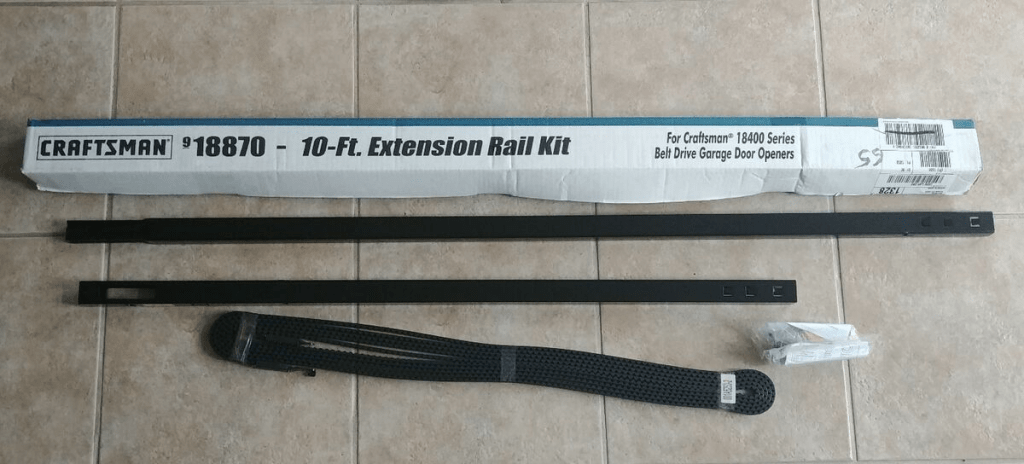

If your garage door requires extra clearance or you’ve upgraded to a taller door, the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit is the perfect solution. Many homeowners struggle with doors that exceed the standard opener rail length, leading to inefficient or incomplete operation. This guide covers everything from features to installation, maintenance, and troubleshooting.
Why Choose the Craftsman 10-Ft Belt Rail Extension Kit
- Extended Reach: Adds 10 feet of rail for taller garage doors.
- Durable Construction: High-quality materials for long-term reliability.
- Compatibility: Works with most Craftsman belt drive openers.
- Quiet Operation: Maintains the smooth and low-noise function of belt-driven systems.
- Easy Installation: Designed for DIY enthusiasts with step-by-step instructions.
Read too: Door and Garage Door Companies: Choosing the Right Partner for Your Needs
Industry experts report that adding a proper extension kit can prevent up to 30% of operational errors in taller garage doors.
Key Features
- Material: Heavy-duty steel and reinforced polymer components.
- Length: Extends the belt rail by 10 feet.
- Compatibility: Fits Craftsman belt drive garage door openers (check model compatibility).
- Mounting Hardware: Includes brackets, bolts, and fasteners for installation.
- Smooth Operation: Maintains low vibration and quiet performance.
Step-by-Step Installation Guide
1. Prepare Your Garage
- Ensure the garage door is closed and unplug the opener.
- Measure door height and confirm the 10-ft extension will meet your requirements.
2. Assemble the Rail Extension
- Connect the new rail section to the existing opener rail.
- Align the rail carefully and secure with included hardware.
3. Attach the Trolley and Belt
- Slide the trolley onto the extended rail.
- Attach the belt and ensure it is tensioned correctly.
4. Connect the Door Arm
- Attach the curved door arm from the trolley to the garage door.
- Adjust the arm length to match the door height for proper operation.
5. Mount Support Brackets
- Secure the ceiling brackets at proper intervals along the extended rail.
- Ensure stability and alignment to prevent sagging.
6. Test the System
- Plug in the opener and run a full cycle.
- Adjust limit switches and force settings to ensure smooth open and close operation.
Maintenance Tips
| Task | Frequency |
|---|---|
| Inspect rail brackets | Every 6 months |
| Check belt tension | Every 3 months |
| Lubricate trolley rollers | Every 6 months |
| Test door balance | Annually |
Pro Tip: Avoid petroleum-based lubricants; use silicone spray for smooth and quiet operation.
Troubleshooting Common Issues
Problem: Door sticks after extension
Solution: Check belt tension and alignment of the new rail section.
Problem: Excess noise
Solution: Tighten bolts and lubricate trolley rollers.
Problem: Door doesn’t close fully
Solution: Adjust the limit switch settings on the opener.
Problem: Belt slips
Solution: Ensure proper belt tension and correct trolley installation.
Advantages vs Disadvantages
Advantages:
- Adds necessary clearance for taller garage doors
- Maintains quiet belt drive performance
- Compatible with multiple Craftsman models
Disadvantages:
- Requires correct alignment for optimal performance
- DIY installation may take 1–2 hours depending on experience
FAQ – Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit
1. Will this kit fit all Craftsman belt drive openers?
It is compatible with most models, but check your opener’s manual for confirmation.
2. Can I install it myself?
Yes, the kit includes all hardware and instructions for DIY installation.
3. How do I maintain the extended rail?
Inspect brackets, tighten bolts, and lubricate rollers regularly.
4. Does it affect the quiet operation?
No, belt-driven quiet operation is maintained when installed correctly.
5. Can it handle heavier garage doors?
Yes, up to the manufacturer’s rated door weight for your specific opener model.
Conclusion
The Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit is a reliable, easy-to-install solution for homeowners needing extra rail length for taller garage doors. By following proper installation and maintenance, you can enjoy smooth, quiet, and long-lasting garage door operation.
