Installing a garage door opener can feel intimidating, especially if you’ve never done it before. Many homeowners search how to hook up a Chamberlain garage door opener because they want a reliable, safe, and cost-effective DIY solution. The good news is that Chamberlain openers are designed with homeowners in mind, and with the right steps, most people can hook one up successfully in a single afternoon.
This guide walks you through the entire process clearly and safely—no advanced technical skills required.
What Is a Chamberlain Garage Door Opener?
A Chamberlain garage door opener is a motorized system that opens and closes your garage door using a remote, wall control, or smartphone (on smart models).
Chamberlain products are manufactured by Chamberlain Group, one of the most trusted names in garage door automation in the US, known for durability, safety features, and smart-home compatibility.
Read too: How to Perform a Chamberlain Garage Door Opener Code Change? Mastering Security
Before You Start: Important Safety Notes
Before learning how to hook up a Chamberlain garage door opener, safety must come first.
Critical Safety Reminders
- ⚠️ Never work on a broken garage door spring
- ⚠️ Do not install an opener on an unbalanced door
- ⚠️ Always disconnect power when wiring
- ⚠️ Use a stable ladder and safety glasses
For general background on garage door systems and safety, you can review this overview on Wikipedia.
Tools and Materials You’ll Need
Prepare everything before starting to avoid interruptions.
Basic Tools
- Step ladder
- Socket wrench set
- Screwdrivers (flat & Phillips)
- Power drill
- Measuring tape
- Level
Included With Most Chamberlain Kits
- Motor unit
- Rail sections
- Trolley
- Chain or belt
- Wall control
- Safety sensors
- Remote(s)
⏱ Estimated install time: 2–4 hours for beginners
How To Hook Up A Chamberlain Garage Door Opener: Step-by-Step
Step 1: Check Door Balance
This step determines whether installation is safe.
How to Test
- Pull the emergency release cord
- Lift the door halfway manually
- Release it
✔ Door stays in place → balanced
❌ Door drops or rises → spring issue (stop and call a pro)
Step 2: Assemble the Rail and Trolley
Most Chamberlain openers use sectional rails.
Steps
- Lay rail pieces on the floor
- Connect them firmly until they lock
- Slide the trolley onto the rail
- Attach chain or belt according to instructions
📌 Ensure the trolley moves smoothly before continuing.
Step 3: Attach the Rail to the Motor Unit
- Align the rail with the motor
- Secure using provided bolts
- Tighten firmly—but don’t overtighten
This forms the main drive system.
Step 4: Install the Header Bracket
The header bracket anchors the opener to the garage structure.
Correct Placement
- Centered above the garage door
- Mounted to a solid structural beam
- About 2–4 inches above the door’s highest point
⚠️ Never mount only into drywall.

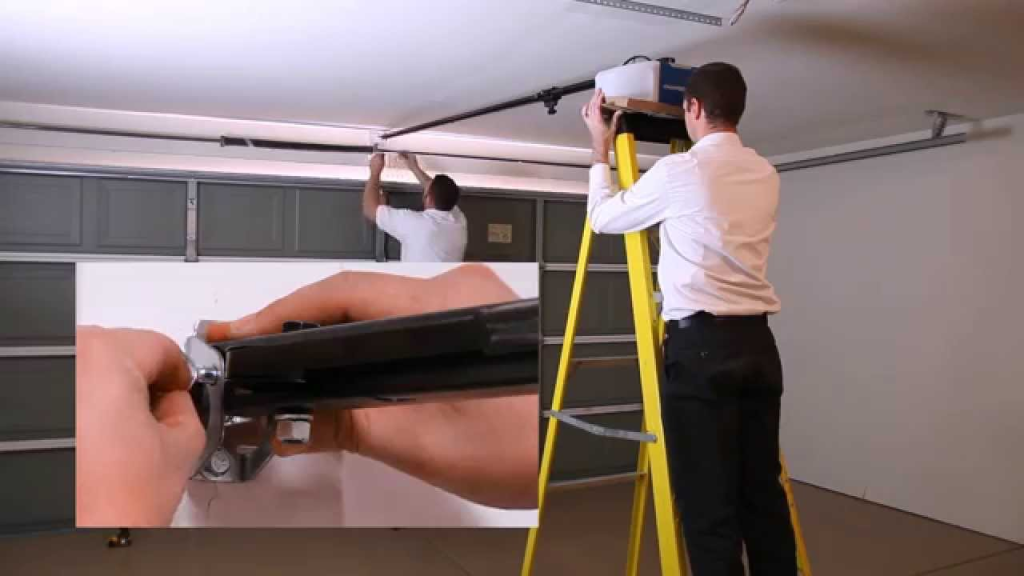

Step 5: Mount the Opener to the Ceiling
- Lift the motor unit (get help if needed)
- Attach angle iron or mounting straps
- Secure to ceiling joists
- Use a level to ensure proper alignment
A level opener reduces vibration and noise.
Step 6: Connect the Door Arm
- Attach curved door arm to the trolley
- Attach straight arm to the garage door bracket
- Bolt both arms together
This allows the opener to move the door.
Step 7: Install the Safety Sensors (Very Important)
Chamberlain openers will not work without sensors.
Correct Sensor Setup
- One sensor on each side of the door
- Mounted 5–6 inches above the floor
- Facing each other directly
Wiring
- Run low-voltage wire from each sensor
- Connect to labeled terminals on motor unit
✔ Solid lights = aligned correctly
❌ Blinking lights = adjust alignment
Step 8: Install the Wall Control
- Mount control at least 5 feet above the floor
- Run wire neatly along wall and ceiling
- Connect to motor unit terminals
This provides reliable manual control.
Step 9: Plug In and Power Up
- Plug opener into ceiling outlet
- Avoid extension cords
- Use a surge protector if possible
You should see indicator lights on the opener.
Step 10: Program the Travel Limits
This teaches the opener how far to open and close.
How to Set Limits
- Press and hold the “Learn” or adjustment button
- Use arrows to set open position
- Confirm
- Set closed position
📏 Take your time—this prevents door strain.
Step 11: Test the Safety Reversal System
This is required for safety compliance.
Test Method
- Place a 2×4 board flat under the door
- Close the door
- Door must reverse upon contact
If not, adjust force settings immediately.
Common Problems and Quick Fixes
| Issue | Likely Cause | Fix |
|---|---|---|
| Door won’t close | Sensor misaligned | Align sensors |
| Opener hums only | Door not balanced | Check springs |
| Remote won’t work | Not programmed | Reprogram |
| Door reverses | Force too high | Adjust force |
| Loud noise | Loose hardware | Tighten bolts |
Pros and Cons of DIY Installation
Pros
- ✔ Saves $150–300 in labor
- ✔ Learn your system
- ✔ Flexible schedule
Cons
- ✖ Time-consuming for beginners
- ✖ Requires careful measurements
- ✖ Not suitable if springs are damaged
When You Should Call a Professional
Stop DIY installation and call a technician if:
- Garage door springs are broken
- Door is off track or crooked
- Ceiling structure is weak
- Door is unusually heavy
Safety always outweighs cost savings.
Maintenance Tips After Installation
- Lubricate rollers and hinges every 6 months
- Test sensors monthly
- Replace remote batteries yearly
- Tighten mounting bolts annually
Regular maintenance extends opener life significantly.
FAQ: How To Hook Up A Chamberlain Garage Door Opener
Q1: Can I install a Chamberlain garage door opener myself?
Yes, if your garage door is balanced and you follow instructions carefully.
Q2: How long does installation usually take?
Most DIY installs take 2–4 hours.
Q3: Do Chamberlain openers work with smart home systems?
Many models support Wi-Fi and smartphone control.
Q4: Why won’t my Chamberlain opener close the door?
This is usually due to misaligned safety sensors.
Q5: Is professional installation required for warranty?
No, but installation must follow manufacturer guidelines.
Conclusion
Learning how to hook up a Chamberlain garage door opener is completely achievable for most homeowners with patience and the right steps. By carefully installing the rail, sensors, controls, and safety systems, you’ll enjoy smooth, reliable operation for years to come.
