Are you looking to upgrade your garage door system? Learning how to install Craftsman 1 2 Hp garage door opener can be a game-changer for your home. Known for durability and reliability, Craftsman garage door openers offer smooth operation, excellent lifting power, and modern safety features. The best part? You can install it yourself with a bit of time and the right tools.
This detailed, beginner-friendly guide will walk you through everything—from unboxing to final testing—so you can confidently set up your Craftsman 1/2 HP garage door opener without calling a professional. Let’s get started!
Read too: How To Replace Garage Door Roller Like a Pro? Step-by-Step Guide
Why Choose a Craftsman 1/2 HP Garage Door Opener?
Before diving into the how-to section, let’s take a look at why this model is such a popular choice:
- Reliable Performance: The 1/2 horsepower motor is ideal for single or double garage doors made of lightweight materials like aluminum or steel.
- Smooth & Quiet Operation: Belt and chain drive systems offer reliable opening and closing without much noise.
- Safety Sensors: Built-in photo-eye sensors reverse the door if something is in its path.
- Security Features: Includes rolling code technology to prevent code theft.
- Remote Access Capabilities: Compatible with universal remotes and some smart garage systems.
If you’re aiming for functionality without breaking the bank, this is a solid option.
What You’ll Need for Installation
Tools Required:
- Power drill with bits
- Screwdrivers (Phillips and flathead)
- Wrenches and sockets
- Hammer
- Pliers
- Measuring tape
- Ladder
- Stud finder
- Wire stripper/cutter
- Level
Included in the Craftsman Garage Door Opener Kit:
- Motor unit
- Rail system
- Trolley assembly
- Safety reversing sensors
- Remote control(s)
- Wall-mounted control panel
- Mounting brackets and hardware
- Instruction manual
Ensure all parts are present by cross-referencing with the included inventory list.
Preparation Before You Begin
Take a few minutes to prep the space:
- Clear the garage door area of any clutter.
- Ensure your existing garage door functions smoothly manually.
- Disconnect power from your old garage door opener, if replacing one.
- Make sure there is a GFCI outlet near the garage ceiling for the opener’s power cord.
How To Install Craftsman 1 2 Hp Garage Door Opener: A Full Breakdown
Let’s now dive into the step-by-step instructions on how to install Craftsman 1 2 Hp garage door opener. These steps apply to most Craftsman chain or belt-drive models.
Step 1: Assemble the Rail and Trolley System
Start by assembling the rail system. Align the sections and snap or bolt them together as per the manual instructions. Once assembled:
- Slide the trolley carriage onto the rail.
- Attach the idler pulley and stop bolt at both ends as directed.
- Secure the rail to the motor unit using bolts and brackets.
Make sure the rail is facing the correct direction—the end with the pulley goes toward the garage door.
Step 2: Mount the Header Bracket
- Locate the center point above your garage door using a tape measure.
- Place the header bracket 2 inches above the highest point the door travels.
- Use a stud finder to locate a wood stud and secure the bracket with lag screws.
This bracket anchors the opener rail above the garage door and is crucial for stability.
Step 3: Attach the Rail to the Header Bracket
- Raise the front end of the rail and secure it to the header bracket using a clevis pin and fastener.
- You may need an assistant or ladder to hold it in place.
This connection will allow the trolley to move the door up and down.
Step 4: Position and Mount the Motor Unit
- Lift the motor unit into place near the center of the garage ceiling.
- Use angle iron or mounting straps to attach it securely to ceiling joists.
- The opener should hang level and have adequate clearance for vibration and movement.
Make sure the opener is well-supported—avoid attaching it directly to drywall.
Step 5: Connect the Door Arm to the Trolley
The door arm assembly consists of:
- A straight section (attached to the trolley)
- A curved section (connected to the garage door)
Secure both ends with bolts and pins. The trolley should move freely when the opener is activated.
Step 6: Install the Safety Sensors
Install the photo-eye safety sensors on both sides of the garage door:
- Mount them 6 inches above the floor.
- Align them so they face each other directly.
- Connect the sensor wires to the appropriate terminals on the motor unit (typically white and black).
- Use the wire clips or staples to secure wires along the wall.
Misaligned or obstructed sensors will prevent the door from closing properly.
Step 7: Mount the Wall Console and Route Wiring
Choose a visible, convenient spot inside the garage—usually next to the entry door—for the wall console.
- Strip the wires and insert them into the control terminals on the motor unit.
- Secure the wiring along walls and ceiling using clips or staples.
Once connected, test the wall button for power.
Step 8: Plug In the Opener and Install Light Bulbs
Insert compatible light bulbs into the motor housing if your model includes built-in lighting. Then:
- Plug the motor unit into the ceiling outlet.
- The light should blink or remain steady depending on model type.
- You can now test basic functions.

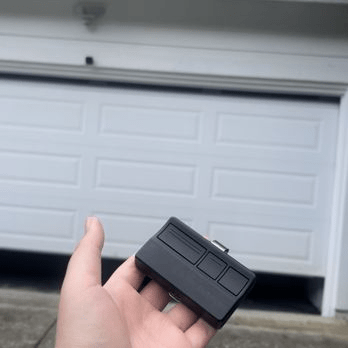

Step 9: Program the Remote Controls
Use the “Learn” button on the opener to sync your remotes:
- Press and release the Learn button.
- Within 30 seconds, press the button on your remote.
- A light will flash or you’ll hear a click to confirm pairing.
Repeat the process for each remote you want to program.
Step 10: Adjust Force and Travel Limits
Every Craftsman garage door opener includes travel and force adjustment screws or dials. Adjust these to control:
- How far the door travels up and down
- How much force it uses to close
You’ll find adjustment details in your manual. It’s crucial to test the safety reversal system by placing an object in the door’s path. The door should automatically reverse.
Post-Installation Maintenance Tips
After learning how to install Craftsman 1 2 Hp garage door opener, keep it working at peak performance with regular care:
- Lubricate the rail and door hinges every 6 months.
- Check for loose bolts or screws.
- Test sensors and safety reversal monthly.
- Replace remote batteries annually.
Troubleshooting Common Issues
Even with proper installation, you might run into small hiccups. Here are a few common ones:
| Problem | Solution |
|---|---|
| Door won’t close | Check sensor alignment or obstructions |
| Opener light blinks but doesn’t move | Reprogram remote or reset motor |
| Door reverses before hitting floor | Adjust down travel and force limit |
| Motor runs but trolley doesn’t move | Check if trolley is disengaged |
Consult the model manual for more detailed fixes.
Professional Installation vs DIY
If you’re uncomfortable working with tools, dealing with wiring, or don’t have time, consider hiring a professional. While you now know how to install Craftsman 1 2 Hp garage door opener, installation services typically range from $150 to $300 and come with a warranty.
Final Thoughts
Installing a Craftsman 1/2 HP garage door opener is a straightforward DIY project when broken down into steps. By following this guide on how to install Craftsman 1 2 Hp garage door opener, you’ll save money, gain confidence, and enjoy a smoother-operating garage door.
Take your time, follow safety precautions, and refer to your user manual as needed. With the right tools and a little patience, your garage door will be opening like a charm in no time.
