What Is A Travel Module On A Garage Door Opener and Why It’s Essential for Proper Function

Garage door openers have become a staple of modern convenience, allowing homeowners to open and close their garage doors with the simple push of a button. However, behind this seemingly simple operation lies a network of components working in harmony to ensure smooth performance—and among them is a critical but often overlooked device known as the travel module.

What Is A Travel Module On A Garage Door Opener

What is a travel module on a garage door opener, and why should you care about it? If you’ve ever had a garage door that doesn’t close completely, reverses unexpectedly, or stops mid-motion, chances are the issue lies within this essential mechanism. In this article, we’ll explore the purpose, functionality, and maintenance of a travel module, while answering common questions and helping you determine whether yours may need attention or replacement.

Read too: The Complete Guide to Tighten Chain On Garage Door Opener for Smooth Operation


What Is A Travel Module On A Garage Door Opener?

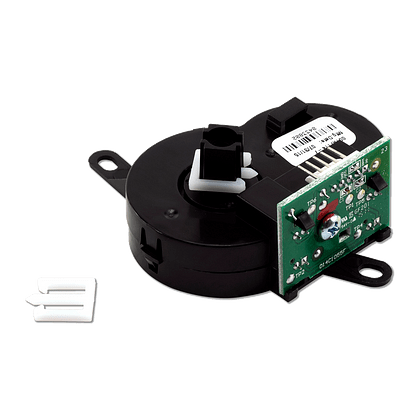

A travel module on a garage door opener is an internal component that controls how far the garage door travels during opening and closing cycles. In simpler terms, it determines when your garage door should stop moving—both in the upward and downward directions.

Think of the travel module as the brain that tells your garage door opener, “This is far enough.” If it’s not working properly, your garage door might:

  • Not close all the way
  • Hit the ground and bounce back
  • Stop prematurely during opening
  • Fail to reverse if it hits an obstacle

The travel module works closely with limit switches, motor sensors, and sometimes with control boards to define the correct open and close limits for the garage door’s motion.


Why the Travel Module Is So Important

You might not think twice about what’s happening when your garage door opens or closes, but the travel module plays a crucial role in ensuring:

  1. Safety: Prevents the door from crushing objects or people in its path.
  2. Convenience: Ensures smooth, full travel without unexpected stops.
  3. System Longevity: Reduces motor wear and prevents gear misalignment.
  4. Security: Makes sure the garage door is fully closed when you leave.
See also  Spring Kings Garage Door Service: Enhancing Home Security and Convenience

If you notice your garage door behaving erratically, such as stopping too soon or reopening after touching the ground, the travel module might be misadjusted or faulty.


How Does a Travel Module Work?

The travel module functions by measuring the number of motor revolutions or tracking encoder signals. These measurements determine when to stop the motor to open or close the door at the correct position. Here’s how it works in most systems:

  • When you press the remote or wall button, the opener motor activates.
  • The travel module monitors the distance the motor turns.
  • It compares this movement to the preset travel limits.
  • Once the set point is reached, it signals the motor to stop.

Depending on the model, the travel module can be mechanical (with adjustment screws) or electronic (adjusted using buttons or digital interfaces). Newer models often use digital travel modules with self-learning features and integrated diagnostics.


Common Problems Caused by a Faulty Travel Module

If your travel module starts to fail or is misconfigured, it can cause a range of issues that are frustrating and potentially hazardous:

1. Door Doesn’t Fully Close or Open

The door may stop a few inches short of the ground or fail to open completely. This is often caused by incorrect travel limit settings.

2. Door Reverses After Hitting the Floor

A worn or damaged travel module can send incorrect feedback to the motor, making the door think it hit an obstacle—even when it hasn’t.

3. Door Opens Randomly or Stops Midway

Erratic behavior may indicate a failing electronic module or disrupted internal wiring.

See also  Garage Door Only Partially Opens

4. Motor Keeps Running After Door Stops

If the travel module doesn’t send a stop signal in time, the motor may continue to run and overheat, leading to system failure.


How to Adjust or Replace a Travel Module

Knowing what is a travel module on a garage door opener is only the first step—understanding how to diagnose and potentially fix it is equally important.

Adjusting the Travel Module (Mechanical Units):

Most older or mid-range garage door openers have manual travel limit adjustment screws labeled “Up” and “Down.” To fine-tune your door’s operation:

  1. Locate the adjustment screws (usually on the back or side of the opener).
  2. Use a screwdriver to turn the “Down” screw to close the door lower or higher.
  3. Use the “Up” screw to adjust how far the door opens.
  4. Test the door’s motion after each small adjustment.

Adjusting Digital Travel Modules (Newer Units):

High-tech openers like those from LiftMaster or Genie often have electronic settings:

  1. Press and hold the “Up” or “Down” travel button on the control panel.
  2. Move the door to the desired stop point.
  3. Save the setting with a confirmation button.

Replacing a Faulty Module:

If adjustment fails to resolve the issue, the module may be defective. You’ll likely need:

  • The correct replacement travel module for your opener model.
  • Basic tools: screwdriver, pliers, and wire strippers.
  • About 30–45 minutes of installation time (or call a technician).

Always unplug the unit before opening the housing to avoid electrical shock.


Signs That Your Travel Module Needs Replacement

Sometimes, adjustment just won’t cut it. Here are clear indicators that your travel module is malfunctioning:

  • You’ve adjusted the settings, but the door still misbehaves.
  • The motor runs, but the door doesn’t move properly.
  • Error codes appear on the display (on smart models).
  • Door opens fine but reverses immediately upon closing.
See also  Troublesoothing: Chamberlain Garage Door Opens A Little Then Stops

If these symptoms persist even after troubleshooting, it’s time to replace the module.


What Is A Travel Module On A Garage Door Opener: Key Takeaways

Understanding what is a travel module on a garage door opener gives you an edge in troubleshooting common garage door issues. This small but vital component ensures that your door opens and closes precisely—no more, no less.

Here are the major takeaways:

  • Function: Controls the open/close limits of the door.
  • Types: Mechanical (screws) and Electronic (buttons or apps).
  • Symptoms of Failure: Misalignment, motor overrun, partial travel.
  • Fixes: Recalibration, firmware updates, or full module replacement.

By ensuring your travel module works correctly, you keep your home more secure, your opener more reliable, and your family safer.


Frequently Asked Questions

Is the travel module the same as a limit switch?

No, but they work together. The travel module sets the limit parameters, while the limit switch physically stops the motor when those limits are reached.

Can I install a travel module myself?

If you’re comfortable with tools and basic electronics, yes. Otherwise, consider hiring a professional.

How much does a replacement travel module cost?

Prices vary by model but typically range from $30 to $100, excluding labor.

How often should I adjust my travel module?

Only when the door doesn’t open/close fully, or after motor or door replacement.


Final Thoughts: Don’t Overlook the Travel Module

The travel module might not be the flashiest part of your garage door system, but its importance cannot be overstated. When it’s working well, everything just works. When it’s off—even slightly—you’ll notice immediately.

Now that you know what is a travel module on a garage door opener, you’re in a better position to diagnose problems, speak with technicians intelligently, and maybe even tackle a fix yourself.
