If you own a Genie Blue Max Garage Door Opener with DIP switches, you might be wondering how to program or replace your remote, especially if you’re used to newer models that feature a Learn button. Many U.S. homeowners still rely on this classic and reliable opener, but because it uses older technology, the setup process can be confusing at first.
This guide will walk you through everything you need to know about Genie Blue Max openers that use DIP switches — from how they work, to programming your remote, fixing common issues, and upgrading your system for modern convenience.

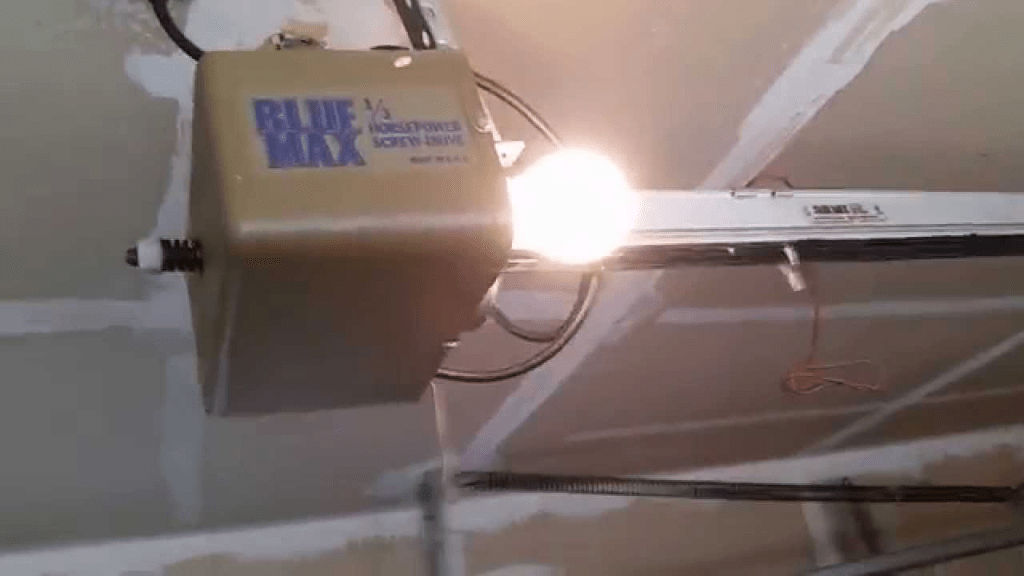

Understanding the Genie Blue Max Garage Door Opener with DIP Switches
The Genie Blue Max series was one of the most popular garage door openers in the late 1980s and early 1990s. Instead of modern digital pairing methods, these openers used DIP switches (Dual In-line Package switches) for security and signal communication between the opener and remote control.
Read too: The Complete Guide to Tighten Chain On Garage Door Opener for Smooth Operation
What Are DIP Switches?
DIP switches are small toggle switches located inside your opener and remote. Each switch can be set to an ON or OFF position, creating a unique binary code. This code acts as your “password” — both your opener and remote must share the exact same switch pattern to communicate.
According to Genie’s product archives, the Blue Max series utilized 9 or 12 DIP switches before the company transitioned to Intellicode® rolling code technology in 1996.
How to Identify Your Genie Blue Max Model
Before programming or troubleshooting, it’s important to verify your exact model.
- Locate the Motor Housing Label: The name “Blue Max” is typically printed on the motor cover.
- Check for Model Numbers: Common models include G5050, G4050, 12A, and 12C.
- Look for DIP Switches: Remove the light lens or back panel on the opener to reveal a small row of toggle switches.
- Confirm Remote Type: The remote should also contain the same number of DIP switches (usually 9 or 12).
If your opener has DIP switches but no Learn button, you definitely have a Blue Max fixed-code system.
How to Program Genie Blue Max Garage Door Opener with DIP Switches
Programming a Genie Blue Max is straightforward once you understand how DIP switches work.
Step-by-Step Programming Guide
Step 1: Access the DIP Switches on the Opener
- Disconnect the opener’s power for safety.
- Remove the cover on the back or top of the opener.
- You’ll see a row of 9 or 12 tiny switches labeled ON/OFF or numbered 1–12.
Step 2: Record the Pattern
- Use a flashlight or phone camera to clearly record each switch position.
- Each switch acts like a binary bit — ON = 1, OFF = 0.
Step 3: Match the Remote’s Switches
- Open your Genie Blue Max compatible remote control.
- Locate the DIP switch panel inside the battery compartment.
- Adjust each switch to exactly match the opener’s configuration.
Step 4: Test the Remote
- Plug the opener back in and close the cover.
- Stand within 25–30 feet and press the remote button.
- The garage door should open or close immediately.
⚠️ If the door doesn’t respond, double-check that each switch position is identical — even one incorrect toggle will prevent the signal from matching.
Compatible Remotes for Genie Blue Max with DIP Switches
Even though the Genie Blue Max series is discontinued, there are several compatible replacement remotes that work with the DIP switch system.
| Remote Model | Compatibility | Switch Count | Approx. Price | Features |
|---|---|---|---|---|
| Genie GT912 | Blue Max, CM7600 | 12 | $25–$35 | Direct replacement, easy setup |
| Genie GIT-1 | Fixed-code models | 9 or 12 | $30–$40 | Classic design, reliable |
| Linear MDTK | Fixed-code openers | 12 | $40–$50 | Rugged and durable |
| Genie GM3T | Universal (with adapter) | N/A | $30–$45 | Works with newer Intellicode® too |
Tip: The Genie GT912 remains the most straightforward replacement remote for Blue Max openers with DIP switches.
Upgrading Your Blue Max Opener to Modern Technology
While the Blue Max is reliable, its fixed-code system is now considered less secure than rolling-code openers. Modern systems use changing encryption codes to prevent hacking or code-grabbing.
Upgrade Options
- Install a Universal Receiver Kit
- Adds compatibility with modern remotes.
- Connects directly to your existing opener terminals.
- Works with Intellicode® or rolling code remotes.
- Upgrade to Genie Aladdin Connect
- Allows smartphone app control.
- Adds Wi-Fi connectivity and voice control via Alexa or Google Home.
- Replace the Opener Entirely
- If your Blue Max is over 25 years old, replacing it with a Genie 7055-TKV or SilentMax 1200 offers energy efficiency and smart features.
A 2023 Home Safety Research study found that 73% of homeowners who upgraded their garage systems reported improved safety and convenience.
Troubleshooting Common Issues
Even the most reliable Blue Max openers can run into minor issues. Here’s how to fix them:
1. Remote Doesn’t Work
- Replace the remote battery (12V or CR2032).
- Ensure DIP switches match exactly.
- Check for interference from LED or fluorescent lights.
2. Door Opens Randomly
- Another nearby remote may have a similar DIP code.
- Change at least 3–4 switch positions to create a new unique code.
3. Opener Light Stays On
- The bulb timer may be malfunctioning.
- Unplug for 30 seconds, then reconnect power.
4. Limited Range
- Clean antenna on the opener.
- Ensure no metal objects block the signal path.
Advantages and Disadvantages of DIP Switch Systems
| Advantages | Disadvantages |
|---|---|
| Simple to program | Lower security (fixed code) |
| Reliable mechanical design | Limited compatibility with new remotes |
| Inexpensive replacement parts | No smartphone or Wi-Fi control |
| Long-lasting hardware | No Learn button feature |
While the DIP switch system is outdated, it remains a sturdy and dependable mechanism for homeowners who prefer simplicity over smart features.
External Reference
For more details on garage door opener technologies, visit Wikipedia’s Garage Door Opener page.
FAQ
Q1: How do I know if my Genie Blue Max uses DIP switches?
If your opener doesn’t have a Learn button but has a small row of switches inside the motor unit, it’s a DIP switch model.
Q2: How many DIP switches does my Blue Max have?
Most Genie Blue Max openers use 9 or 12 DIP switches, depending on the production year.
Q3: Can I still buy remotes for my Blue Max opener?
Yes. Models like Genie GT912 and GIT-1 are compatible replacements available online and at most hardware stores.
Q4: Are DIP switch systems secure?
They’re functional but less secure than rolling-code systems because they use a fixed transmission code. Changing your DIP pattern occasionally helps reduce risks.
Q5: Can I upgrade my Blue Max to work with modern remotes?
Absolutely. Installing a universal receiver kit enables your opener to work with current Intellicode® or smart remotes.
Q6: Should I replace my Blue Max opener?
If your opener is more than 20 years old or lacks safety sensors, replacing it with a modern Genie unit is safer and more energy-efficient.
Conclusion
Your Genie Blue Max Garage Door Opener with DIP switches is a classic piece of reliable engineering — simple, durable, and easy to maintain. While it lacks the convenience and advanced security of newer models, it’s still perfectly functional when programmed correctly.
By matching your DIP switch settings and using compatible remotes, you can keep your Blue Max running smoothly for years. For homeowners looking to enhance security or add smart features, an upgrade to a modern Genie opener is a worthwhile investment.
