Whether you’ve just installed a new garage door opener or you’re troubleshooting an old one, knowing how to set limits on Chamberlain garage door opener is essential. Setting the up and down travel limits ensures that your garage door opens and closes to the correct positions—preventing it from hitting the ground too hard, stopping short, or failing to seal completely.
If you’ve noticed that your door doesn’t fully close or opens too far, limit adjustment is likely the fix you need. This guide will walk you through everything you need to know about adjusting the limits on a Chamberlain garage door opener, from understanding how the limit system works to step-by-step programming instructions.
Read too: Door and Garage Door Companies: Choosing the Right Partner for Your Needs
Why It’s Important to Set the Correct Limits
Before we get into how to set limits on Chamberlain garage door opener, let’s first understand why limit settings are so critical.
1. Safety
Incorrect limits may cause the garage door to close too forcefully or reverse unexpectedly. This can be dangerous for pets, children, or objects in the path of the door.
2. Proper Door Seal
Setting the limits correctly ensures your garage door seals tightly with the ground when closed, preventing weather, pests, and dust from entering.
3. Prevent Motor Strain
When a garage door tries to move beyond its designed range, it places unnecessary strain on the motor, potentially reducing the lifespan of the opener.
4. Smooth Operation
Correct limits make your garage door open and close precisely, reducing the need for frequent adjustments and minimizing wear and tear.
Tools and Preparation Before You Begin
Adjusting the limits on your Chamberlain opener doesn’t usually require special tools, but preparation makes the job easier and safer.
What You’ll Need:
- A ladder or step stool (to access the opener unit)
- Flathead screwdriver (for older models with manual adjustment screws)
- User manual (helpful for reference, but not required)
- A flashlight (if your garage is dim)
Safety Tips:
- Unplug the opener or disconnect power before doing any physical work near the motor.
- Keep hands and tools away from moving parts while testing.
- Ensure the garage door is clear of people, pets, and objects during testing.
Understanding How Chamberlain Garage Door Limits Work
The Chamberlain opener controls door movement with upper and lower travel limits, which define:
- Up limit – how far the door opens
- Down limit – how far the door closes
Depending on your model, limits are adjusted either electronically using buttons on the motor housing or manually using adjustment screws. Most modern Chamberlain openers (post-2011) use an electronic adjustment system, often marked with “Set,” “Up,” and “Down” buttons.
How To Set Limits On Chamberlain Garage Door Opener – Step-by-Step Instructions
Let’s walk through how to set limits on Chamberlain garage door opener using the most common electronic models. If you have a manual (screw-type) limit adjustment, see the additional section below.

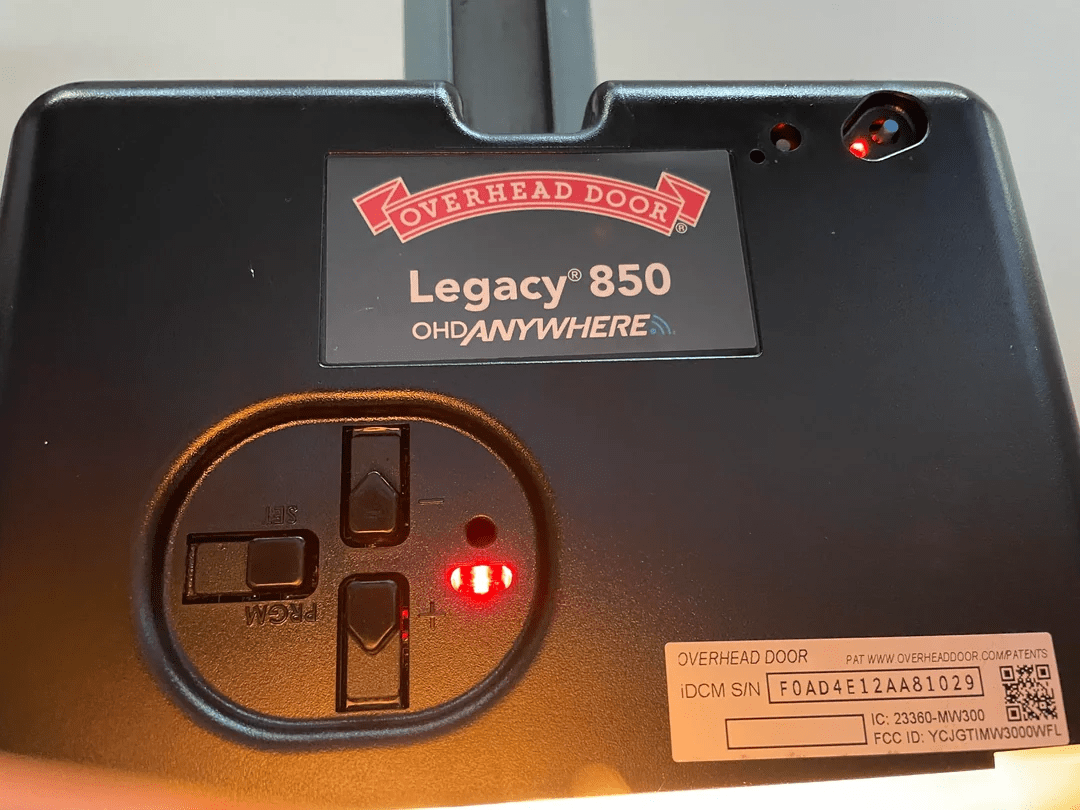

Step 1: Locate the Control Panel on the Opener
Climb the ladder and examine the motor unit. Look for three buttons:
- “Up” (▲) – sets the open limit
- “Down” (▼) – sets the close limit
- “Set” – saves the settings
On some models, these buttons are hidden behind a light lens cover or a small access panel.
Step 2: Enter Programming Mode
- Press and hold the “Set” button until the LED beside it blinks. This puts the opener into programming mode.
- The opener is now ready to learn the travel limits.
Step 3: Set the Open Limit (Up Travel)
- Press and hold the “Up” (▲) button to move the garage door up.
- When the door reaches the fully open position (without hitting the stops), release the button.
- If needed, press the “Down” (▼) button to fine-tune.
- Press the “Set” button to save the open limit. The LED will blink or change to confirm.
Step 4: Set the Close Limit (Down Travel)
- Press and hold the “Down” (▼) button to lower the door.
- When the door is just touching the floor and sealing fully (not crushing), release the button.
- Use the “Up” button if minor adjustments are needed.
- Press the “Set” button again to save the down limit.
Step 5: Test the Door
- Press the remote or wall control to operate the door.
- Make sure it opens and closes smoothly and stops at the correct points.
- If it doesn’t stop properly, repeat the steps to fine-tune the limits.
How to Adjust Manual Limit Screws (Older Models)
Some older Chamberlain models use two plastic screws labeled “Up Limit” and “Down Limit” directly on the opener housing.
To Adjust:
- Turn the screw clockwise to decrease travel.
- Turn counterclockwise to increase travel.
Make adjustments in ¼ turn increments, then test. Repeat until the door opens and closes at the desired points.
Troubleshooting Limit Issues
If you’re still having trouble after learning how to set limits on Chamberlain garage door opener, here are some common problems and how to fix them:
Door Doesn’t Fully Close
- Check the down limit setting and increase the travel slightly.
- Make sure the safety sensors are aligned and not blocked.
Door Reverses After Touching the Ground
- Down limit may be set too far, causing the opener to think it hit an obstruction.
- Adjust the down limit to stop the door gently at the floor.
Door Doesn’t Open Fully
- Increase the up limit setting incrementally.
- Check for obstructions or damage to the tracks or rollers.
LED Indicators Flashing or Beeping
- Refer to the user manual to decode LED patterns—many indicate improper limit settings or sensor issues.
Tips for Maintaining Garage Door Opener Limits Over Time
Once you’ve set your travel limits, regular maintenance ensures they stay consistent and safe.
1. Test Limits Monthly
Operate the door and ensure it reaches the open and closed positions properly. Adjust as needed.
2. Inspect Weather Changes
Extreme temperature swings can cause materials to expand or contract, affecting the travel range.
3. Lubricate Moving Parts
Lubricate the rollers, hinges, and springs every 6–12 months to prevent unnecessary strain on the opener.

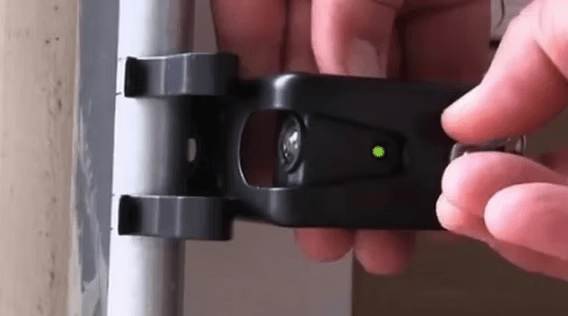

4. Keep Safety Sensors Clean
Dirty or misaligned sensors can interfere with door travel and falsely signal obstacles.
When to Call a Professional
While setting the limits on a Chamberlain garage door opener is a DIY-friendly task, there are times when professional help is best:
- You’re unsure which adjustment system your opener uses.
- The door continues to reverse despite proper settings.
- You’re dealing with a broken torsion spring or cable.
- The opener is over 15 years old and showing signs of failure.
A technician can ensure that the limits are properly configured and that all safety features are working correctly.
Final Thoughts
Knowing how to set limits on Chamberlain garage door opener is key to ensuring your garage door operates safely, efficiently, and smoothly. Whether you’re setting up a brand-new system or adjusting an existing one, understanding the limit controls will help you prevent damage to your door and opener, while keeping your home secure.
To recap:
- Electronic models use the Set/Up/Down buttons for fast, precise adjustments.
- Older models may use limit screws that need careful manual tuning.
- Always test thoroughly and maintain your door regularly.
With the steps outlined above, you’ll have full confidence in managing your garage door opener’s limits—and keeping everything functioning just right.
