If your old garage door opener still works but your remotes don’t, the Liftmaster Garage Door Openers 365LM Plug In Universal Receiver can solve the problem without replacing the entire system. This small add-on lets modern remotes communicate with older openers that lack current security standards.
This guide shows exactly how it works, how to wire it, and how to program it in minutes.

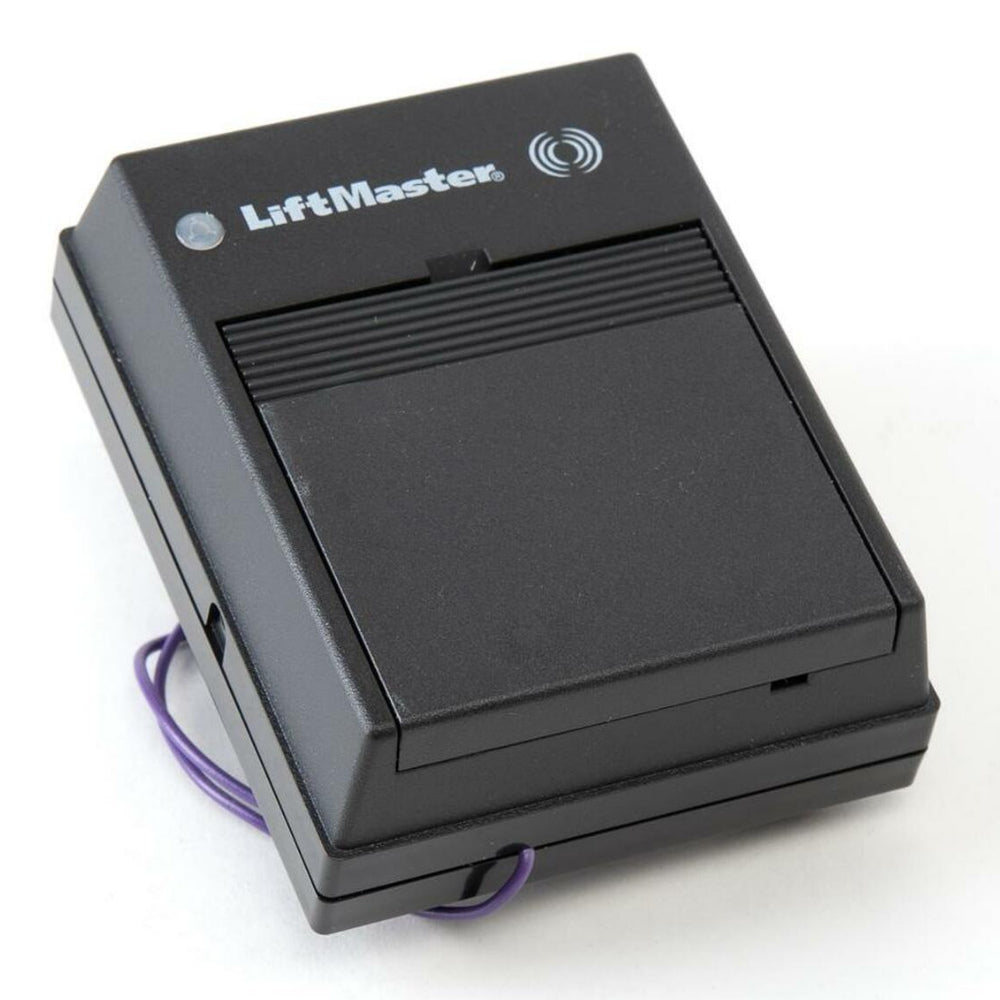

What Is the 365LM Plug-In Universal Receiver?
4
The LiftMaster 365LM Universal Receiver is an external radio receiver made by LiftMaster. It “listens” for signals from modern LiftMaster remotes and then triggers your old opener through the same terminals used by the wall button.
Read too: Mastering the Art of How to Open a Garage Door Safely and Efficiently
It’s ideal when:
- Your opener predates Security+ technology
- You lost compatible remotes
- You want better remote range and reliability
For background on opener control systems, see the overview of a Garage door opener:
https://en.wikipedia.org/wiki/Garage_door_opener
Why Homeowners Use the 365LM Instead of Replacing the Opener
Replacing a working opener can cost $300–$600. The 365LM typically costs a fraction of that and restores full remote functionality.
Benefits
- Works with most brands (Chamberlain, Craftsman, Genie, LiftMaster)
- Adds modern rolling-code security
- Improves remote range
- Quick 15-minute installation
- No need to access motor internals
How the 365LM Connects to Your Opener
The receiver connects to the same two screws used by your wall-mounted push button.
Connection Principle
When you press a remote:
Receiver closes the circuit → opener activates → door moves
No special compatibility is required because every opener has wall button terminals.
Step-by-Step Wiring Instructions (15 Minutes)
Tools Needed
- Small flat screwdriver
- Wire stripper (if needed)
- Ladder
Step 1 — Locate Wall Button Terminals
Find two low-voltage screws labeled:
- PUSH BUTTON
- WALL CONTROL
- or simply two terminals with wires
Step 2 — Loosen Terminal Screws
Do not remove existing wall button wires.
Step 3 — Insert 365LM Wires
Insert one wire into each terminal alongside existing wires.
Step 4 — Plug Receiver Into Outlet
Use ceiling outlet near opener motor.
Step 5 — Extend Antenna Wire
Let the thin antenna hang freely for best range.
Programming Remotes to the 365LM
Programming Steps
- Press and release Learn button on 365LM
- LED lights for 30 seconds
- Press remote button
- LED blinks to confirm pairing
You can program up to 8 remotes.
Compatibility Table
| Opener Brand | Works with 365LM? | Notes |
|---|---|---|
| LiftMaster (old models) | ✅ | Most common use |
| Chamberlain | ✅ | Direct compatibility |
| Craftsman | ✅ | Same wiring system |
| Genie | ✅ | Uses wall terminals |
| Screw Drive openers | ✅ | As long as wall button exists |
Common Mistakes to Avoid
- Connecting to sensor terminals instead of wall button
- Coiling antenna wire (reduces range)
- Plugging into extension cord (interference)
- Programming remote before wiring is complete
How Much Range Improvement Can You Expect?
Many users report:
- Original remotes: 10–20 ft
- With 365LM: 80–120 ft
The external antenna dramatically improves reception.
365LM vs Buying a New Opener (Comparison)
| Feature | 365LM Receiver | New Opener |
|---|---|---|
| Cost | Low | High |
| Install time | 15 minutes | 3–5 hours |
| Keeps old motor | Yes | No |
| Modern remotes | Yes | Yes |
| Wi-Fi features | No | Yes |
If your motor is strong, the receiver is the smarter upgrade.
Troubleshooting Tips
| Issue | Cause | Fix |
|---|---|---|
| Remote not working | Not programmed | Repeat learn step |
| Short range | Antenna coiled | Extend antenna |
| Door opens randomly | Wrong terminal | Move to wall button screws |
| No power | Outlet dead | Check ceiling outlet |
FAQ — 365LM Universal Receiver
Q1: Can this work with very old openers from the 1990s?
Yes, as long as there is a wall push-button terminal.
Q2: Does this add rolling code security?
Yes. It upgrades security of older systems.
Q3: Can I still use my wall button?
Yes. It remains connected.
Q4: How many remotes can be programmed?
Up to 8 remotes.
Q5: Does this require opening the motor housing?
No. All wiring is external.
Conclusion
The Liftmaster Garage Door Openers 365LM Plug In Universal Receiver is one of the easiest and most cost-effective upgrades you can make to an older opener. In minutes, you can restore reliable remote access, improve range, and add modern security—without replacing the entire unit.
