How To Set Garage Door Opener Mazda Cx 5

Introduction

There is nothing quite as frustrating as pulling into your driveway after a long day, only to realize you cannot get your new vehicle to communicate with your home’s security system. If you are struggling to sync your remote, understanding how to set garage door opener Mazda CX-5 models is the first step toward seamless, keyless entry convenience. This comprehensive guide walks you through the exact programming process with empathy and precision, ensuring you spend less time fumbling with manuals and more time enjoying the comfort of your home.

Understanding Your Mazda CX-5 HomeLink System

Before diving into buttons and lights, it is vital to understand what you are actually programming. Most modern Mazda CX-5 vehicles (2017–2026 trims) come equipped with the HomeLink Universal Transceiver. This is not merely a “garage door button”; it is a sophisticated radio frequency (RF) bridge that replaces your handheld remote.

According to automotive technology standards, HomeLink systems operate on frequencies between 288 MHz and 390 MHz, covering the vast majority of North American garage door openers. However, compatibility depends heavily on the age of your garage door motor.

Rolling Code vs. Fixed Code Technology

Understanding this distinction prevents 90% of programming failures:

• Rolling Code (Post-1996): Uses a changing security algorithm every time the door opens. Requires a specific “learn button” synchronization step at the garage motor unit.
• Fixed Code (Pre-1996): Uses a static dip-switch pattern. Easier to program but significantly less secure.

Expert Note: Always verify your garage door opener’s manufacturing date. If it was built after 1996, assume it uses rolling code technology. For a deeper technical understanding of these security protocols, refer to the Wikipedia article on Garage Door Openers, which details the evolution of RF safety standards.

Step-by-Step: How To Set Garage Door Opener Mazda CX-5

Follow these precise instructions. Do not rush; timing between steps is critical for successful synchronization.

Phase 1: Clear Previous Memory (Essential First Step)

Even if your CX-5 is brand new, always clear the HomeLink memory to prevent signal conflicts.

1. Locate the three HomeLink buttons on your overhead console or rearview mirror assembly.
2. Press and hold the two outer buttons simultaneously.
3. Hold for approximately 10 seconds until the indicator light changes from solid amber to rapidly flashing green.
4. Release both buttons. The system is now factory-reset and ready for new programming.

Phase 2: Program the Handheld Remote to HomeLink

This phase teaches your car to recognize your existing garage remote’s signal.

1. Sit in the driver’s seat with your ignition in ACC/ON position (engine can be off, but electrical systems must be active).

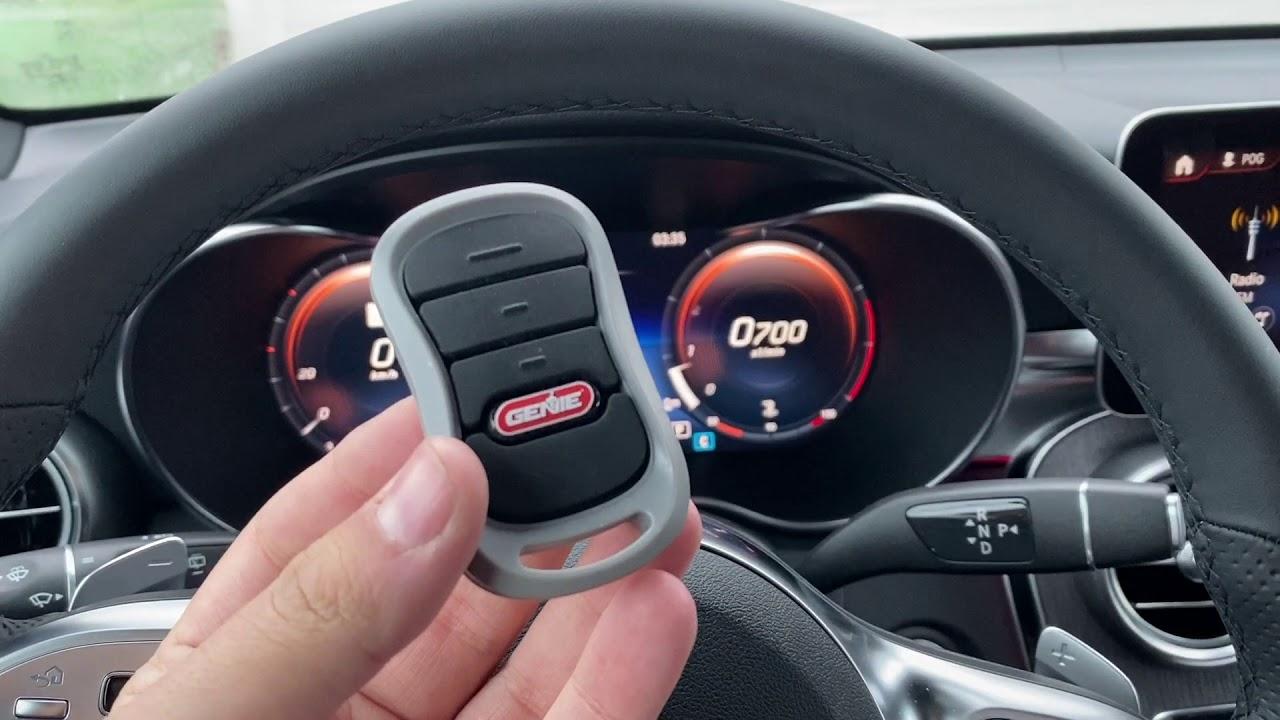

2. Hold your original garage door remote 1–3 inches away from the HomeLink buttons.
3. Simultaneously press and hold your handheld remote button AND your chosen HomeLink button.
4. Watch the HomeLink indicator light closely:
   • Slow Flash: Still learning. Keep holding.
   • Rapid Flash / Solid Green: Programming successful. Release both buttons.
5. Test by pressing the programmed HomeLink button once. The garage door should activate.

Phase 3: Synchronize Rolling Code Systems (Critical for Modern Doors)

If your door did not respond in Phase 2, or if it responded inconsistently, you must complete this synchronization step at the garage motor unit itself.

1. Locate the “Learn” or “Smart” button on your garage door opener motor (usually near the antenna wire or light lens). Colors vary: yellow, purple, orange, or red.
2. Press the Learn button once (do NOT hold). The learn LED will illuminate or blink, indicating a 30-second programming window.
3. Return to your Mazda CX-5 within those 30 seconds.
4. Press and hold your programmed HomeLink button for 2 seconds, then release. Repeat this press-hold-release cycle up to 3 times until the garage door activates.
5. Once the door moves, synchronization is complete.

Troubleshooting Common Programming Failures

Even professionals encounter hiccups. Use this diagnostic table before assuming hardware failure.

Symptom	Likely Cause	Solution
Light never flashes during Phase 2	Dead remote battery or wrong frequency	Replace remote battery; verify opener compatibility
Slow flash that never becomes rapid	Signal interference or distance issue	Reposition remote closer/farther; try outside vehicle
Programs but door won’t open	Rolling code sync incomplete	Repeat Phase 3; ensure Learn button pressed (not held)
Works intermittently	Weak battery in car or remote	Check CX-5 battery health; replace remote battery
Indicator stays solid amber	Memory not cleared properly	Redo Phase 1 clearing sequence completely

When to Seek Professional Help

If you have completed all phases correctly and the system still fails, consider these factors:

• Frequency Mismatch: Some European or Canadian-market CX-5 models use different HomeLink frequencies than US garage openers.
• Aftermarket Opener Compatibility: Budget garage door motors sometimes lack proper HomeLink handshake protocols.
• Electrical Issues: A failing overhead console module may require dealership diagnosis.

Safety Considerations You Cannot Ignore

Programming convenience should never compromise household safety. Please observe these non-negotiable precautions:

• Never program while the garage door is moving. Wait for complete stop before initiating any sequence.
• Keep hands and objects clear of door tracks and springs during testing. Torsion springs store lethal energy.
• Verify auto-reverse sensors are functional after programming. Place a 2×4 board under the door; it must reverse upon contact.
• Do not share HomeLink access with untrusted individuals. Unlike physical remotes, HomeLink cannot be easily deactivated without clearing the entire system.
• Park outside the garage during initial programming to avoid accidental entrapment.

Frequently Asked Questions (FAQ)

Q1: Can I program my Mazda CX-5 HomeLink without the original garage remote?

Generally, no. HomeLink requires cloning an existing remote’s signal. However, some newer Chamberlain/LiftMaster openers allow direct Wi-Fi-based programming through the MyQ app, which can then sync to HomeLink without a physical remote. Check your opener’s manual for “direct HomeLink pairing” capabilities.

Q2: Why does my HomeLink work for the garage but not for my gate or lights?

Different devices often operate on different frequencies or require separate programming slots. Each HomeLink button can store only one device. Ensure you are using a dedicated button for each accessory and repeat the full programming sequence for each one individually.

Q3: Will disconnecting my CX-5 battery erase my HomeLink settings?

No. HomeLink memory is stored in non-volatile flash memory and survives battery disconnection. However, if you perform a full factory reset of the vehicle’s infotainment system or replace the overhead console module, reprogramming will be necessary.

Q4: My 2024 Mazda CX-5 has no visible HomeLink buttons. Where are they?

Newer CX-5 trims sometimes integrate HomeLink into the rearview mirror housing rather than the overhead console. Look for small, recessed buttons on the bottom edge of the mirror frame. Consult your owner’s manual’s index under “HomeLink” for your specific trim’s location diagram.

Q5: Is HomeLink compatible with smart garage openers like MyQ or Tailwind?

Yes, but indirectly. Smart openers typically include a traditional RF receiver alongside their Wi-Fi module. Program HomeLink to the RF component as described above. The smart features (phone control, notifications) operate independently and do not interfere with HomeLink functionality.

Q6: How many devices can my Mazda CX-5 HomeLink store?

Standard HomeLink systems support three independent devices. This typically covers one garage door, one gate, and one additional accessory (light, fan, or second garage). If you need more, consider upgrading to a HomeLink 5 module through an authorized dealer.

Conclusion

Mastering how to set garage door opener Mazda CX-5 transforms daily routine from minor annoyance to effortless automation. By following the three-phase process—clearing memory, cloning your remote, and synchronizing rolling codes—you gain reliable, secure access that enhances both convenience and property value. Remember that patience during programming pays dividends in years of frustration-free operation.
