How To Remove Cover On Chamberlain Garage Door Opener

Introduction

There is nothing quite as frustrating as hearing your garage door opener make an unusual noise or fail to respond, only to realize you need to inspect the internal components but cannot figure out how to access them. If you are currently staring at your unit wondering how to remove cover on Chamberlain garage door opener, you are not alone; this is one of the most common maintenance hurdles homeowners face. This guide provides a safe, empathetic, and detailed walkthrough to help you access the internal mechanism without damaging your equipment or voiding your warranty.

Safety First: Critical Precautions Before You Begin

Before we discuss the physical removal process, we must address safety. Garage door openers combine high-voltage electricity with heavy mechanical tension. According to industry safety standards, improper handling can lead to severe electrical shock or injury from moving parts.

Disconnect Power: Always unplug the opener from the ceiling outlet or turn off the dedicated circuit breaker. Never rely solely on the wall switch.
Discharge Capacitors: Even when unplugged, capacitors inside the unit can hold a lethal charge for several minutes. Wait at least 5–10 minutes after disconnecting power before touching internal components.
Secure the Door: Ensure the garage door is fully closed and locked in place, or manually secured, so it does not fall if the trolley is disengaged during inspection.
Use Proper Tools: Insulated screwdrivers and safety glasses are non-negotiable.

Expert Note: “The majority of DIY injuries involving garage door openers occur because the homeowner assumed the unit was dead simply because the light was off. Always verify zero voltage with a multimeter.” — Certified Garage Door Technician Safety Guidelines.

For more background on the electrical risks associated with residential automation systems, you can refer to general safety principles outlined on Wikipedia.org.

Identifying Your Chamberlain Model Type

Understanding how to remove cover on Chamberlain garage door opener depends heavily on which generation you own. Chamberlain has produced three primary chassis designs over the last two decades, and the fastener locations differ significantly.

Model Series	Production Era	Cover Fastener Type	Difficulty Level
Chain Drive (Standard)	2010–Present	Side Clips + Bottom Screw	Easy
Belt Drive (Quiet)	2015–Present	Integrated Latch System	Moderate
Legacy / Older Models	Pre-2010	Multiple Phillips Screws	Moderate
Smart Hub / MyQ	2018–Present	Hidden Tab Release	Easy

Check the label on the back or side of the motor head to confirm your model number. Taking a photo of this label before starting is highly recommended for ordering replacement parts later.

Step-by-Step: How To Remove Cover On Chamberlain Garage Door Opener

This tutorial focuses on the most common modern chain-drive and belt-drive units, which represent approximately 75% of residential installations.

Step 1: Locate the Retention Points

Modern Chamberlain units rarely use external screws for the main lens or top cover. Instead, they utilize a snap-fit system. Look along the bottom edge of the plastic housing near the light lens. You will typically find either a single Phillips-head screw or a plastic tab that must be depressed.

Step 2: Release the Light Lens (If Applicable)

On many models, the light lens acts as a retention clip for the main cover.

Gently squeeze the sides of the light lens inward.
Pull the lens downward and away from the unit.
Set the lens aside in a safe location where it won’t be cracked.

Step 3: Disengage the Side Tabs

With the lens removed (or if your model has no lens retention), locate the flexible tabs on both the left and right sides of the cover, approximately 2 inches from the front face.

Use a flat-head screwdriver or your thumb to press the tab inward toward the center of the unit.
While holding the tab depressed, gently pull the cover outward by about ¼ inch.
Repeat on the opposite side.

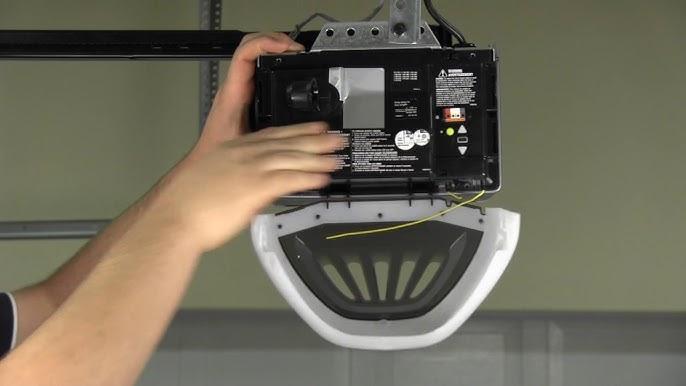

Step 4: Slide and Lift the Cover

Once both sides are released, the cover should slide forward toward the garage door opening by approximately 1–2 inches. After sliding, lift the cover straight up to clear the rear mounting hooks. Do not force it. If you encounter resistance, re-check for hidden screws or additional clips near the antenna wire.

Step 5: Document Internal Layout

Before touching any wires or gears, take high-resolution photos of the internal wiring harness, limit switch positions, and gear assembly. This visual reference is invaluable during reassembly and prevents costly miswiring errors.

Common Reasons Homeowners Remove the Cover

Understanding why you are performing this task helps ensure you focus on the right components once the cover is off.

Gear Replacement: The nylon drive gear is a wear item designed to fail before the motor burns out. It typically lasts 10–15 years.
Capacitor Testing: A humming motor that won’t turn often indicates a failed start capacitor.
Limit Switch Adjustment: If the door reverses before hitting the floor or strains against the closed position, internal travel limits may need recalibration.
Logic Board Inspection: Burn marks, swollen capacitors, or corroded traces on the PCB indicate surge damage or age-related failure.
Cleaning: Dust and debris accumulation can cause overheating and premature component failure.

Troubleshooting: What If the Cover Won’t Budge?

Even when you know how to remove cover on Chamberlain garage door opener, older units can be stubborn. Plastic becomes brittle with heat cycling and UV exposure.

Apply Gentle Heat: Use a hair dryer on low setting to warm the plastic tabs for 30–60 seconds. This increases flexibility and reduces snap risk. Never use a heat gun, as it can melt the housing.
Check for Paint Adhesion: Previous owners may have painted over the seams. Carefully score the seam with a utility knife before applying pressure.
Verify All Fasteners Are Removed: Some commercial-grade or older residential models have a hidden screw beneath the manufacturer’s sticker or behind the antenna bracket.
Avoid Pry Bars: Metal tools against plastic housings create permanent gouges and stress fractures. Use plastic spudgers or trim removal tools instead.

Reassembly Tips to Prevent Future Issues

Putting the cover back correctly is just as important as removing it. Misaligned covers can cause vibration noise, allow pest entry, or interfere with the safety sensor beam.

Align the rear hooks first, then slide the cover backward until it seats fully.
Press the side tabs until you hear an audible click.
Reinstall the light lens last, ensuring it locks into its retaining slots.
Restore power and test the unit’s operation before climbing down from the ladder.
Verify that the manual release cord still moves freely and isn’t pinched by the reinstalled cover.

Frequently Asked Questions (FAQ)

Do I need to remove the entire cover to adjust travel limits?

No. Most Chamberlain models manufactured after 2010 have external limit adjustment screws accessible without removing the main cover. Check the side panel near the rail connection first. Only remove the cover if your model requires internal potentiometer adjustment or if you’re replacing the logic board.

Will removing the cover void my Chamberlain warranty?

Generally, no—if you are performing routine maintenance or inspecting components. However, if you damage internal parts during removal or attempt repairs explicitly excluded from your warranty terms (such as modifying the logic board), coverage may be denied. Always review your specific warranty documentation or contact Chamberlain support before proceeding if your unit is still under warranty.

How often should I open the cover for inspection?

For preventive maintenance, inspecting internal components every 2–3 years is sufficient for most residential users. However, if you notice unusual noises, intermittent operation, or burning smells, immediate inspection is warranted regardless of schedule. Units in dusty environments or extreme temperature zones may require annual checks.

Can I replace the cover if mine is cracked or broken?

Yes. Replacement covers are available through Chamberlain’s official parts distributors and authorized dealers. Search using your exact model number to ensure compatibility. Avoid universal or third-party covers, as they may not align properly with safety sensors or ventilation ports, creating fire or operational hazards.

What tools do I absolutely need for this job?

At minimum: a #2 Phillips screwdriver, a small flat-head screwdriver or plastic pry tool, safety glasses, and a flashlight or headlamp. A multimeter is strongly recommended for verifying zero voltage and testing capacitors. A socket set is only needed if you plan to replace internal gears or the motor assembly during the same session.

Is it safe to work on the opener while the door is open?

It is technically possible but not recommended. An open door places continuous tension on the torsion spring system and trolley assembly. If you accidentally disengage the trolley or release mechanism while the cover is off, the door could drop unexpectedly. Always close and secure the door before beginning internal work.

Conclusion

Learning how to remove cover on Chamberlain garage door opener empowers you to diagnose issues, perform preventive maintenance, and extend the lifespan of one of your home’s most-used appliances. By following the safety protocols and step-by-step instructions outlined above, you can confidently access internal components without risking injury or equipment damage. Remember: patience and proper preparation always beat speed when working with electromechanical systems.

If this guide helped you successfully access your Chamberlain unit, please share it with fellow homeowners who might be struggling with the same issue. Tag us on social media or send this article to a friend tackling their next garage door project—your share could save someone time, money, or a trip to the emergency room. Happy repairing!
